AR-8-48 Range Mount on Left

AR-8-48 (Deep Ovens) (2) 24D with ARSB-36, ARSM-36 or ARCM-36 MOUNT ON LEFT

American Range AR-8 Range Mounting Instructions 1

Instruction:

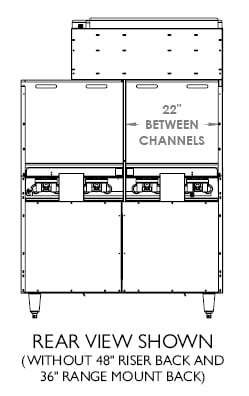

1. Unscrew hi-riser assembly and replace shorter channel system with mounting channel kit provided. Follow orientation in drawing and align with holes.
2. Use self-tapping screws to secure the bottom of the channels to the unit. See detail A to attach middle channel support.
3. Slide-in riser front and align with channel holes. Use self-tapping screws to attach riser front and riser back together onto the channels.
4. Slide-in cheesemelter or salamander carefully onto channels and align with holes. Use the provided 36″ Range Mount to secure channel and salamander with self-tapping screws.

American Range AR-8 LEFT Range Mounting Instructions 2

American Range AR-8 LEFT Range Mounting Instructions 2

American Range AR-8 LEFT Range Mounting Instructions 4
