Restaurant Ranges Raised Griddles

Restaurant Ranges Raised Griddles

Model Shown:AR-6B-24RG (shown with optional casters and ARCM-36)
Features:
  • Commercial gas range with widths 24″, 36″, 48″, 60″, 72″ wide and 32 1/2″ depth.
  • Cooking height 36″ open burners and 44″ raised griddle.
  • Stainless steel sides, front and 6″ deep front landing ledge.
  • Adjustable steel legs (casters optional).
  • Choose: 6″ high stainless-steel stub back, or high riser –
    shelfs not recommended with raised griddles.
  • Two year limited warranty, parts and labor.
  • Base options: Standard, convection, innovection or storage base.
  • Open Burners
    • 12″ x 12″ cast-iron top grates.
    • 32,000 BTU/hr lift-off open burners.
      Removable full width drip pan under burner.
  • Raised Griddles
    • 3/4″ thick steel griddle plate.
    • 3″ wide grease collector.
  • One burner every 12″, rated at 20,000 BTU/hr.
  •  Stainless steel pilot for each burner for automatic ignition.
  • Manual control valve for each burner.
Available Models

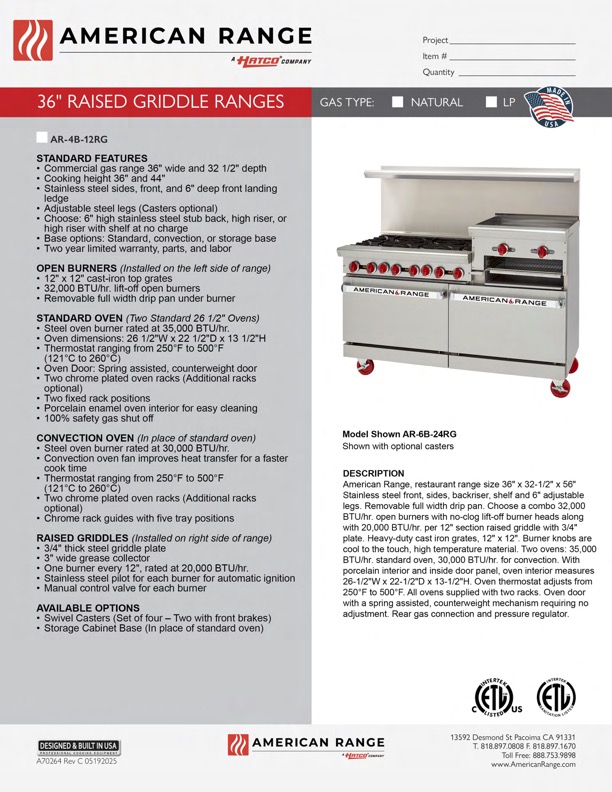

Spec and Manuals
